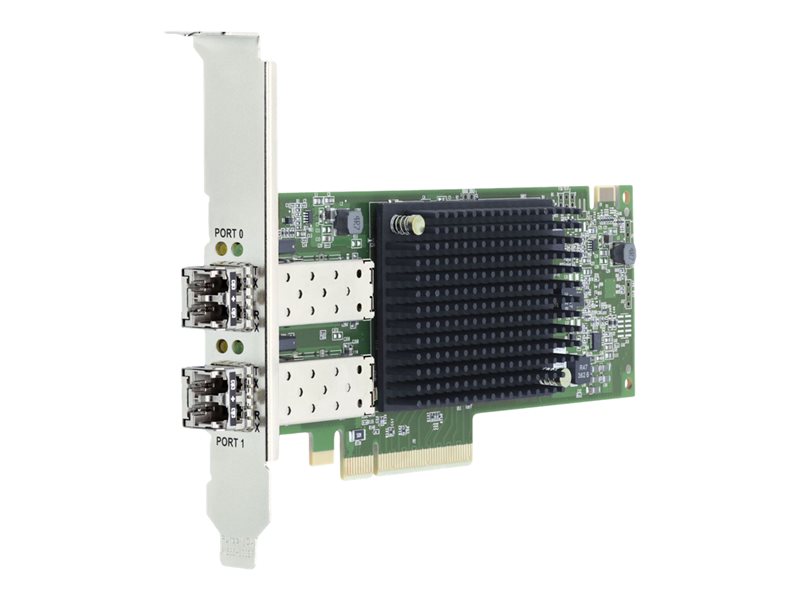

| Description du produit | Lenovo ThinkSystem Emulex LPe32002 V2 - Adaptateur de bus hôte - PCIe 4.0 x8 - 32Gb Fibre Channel Gen 7 (Short Wave) x 2 | |
| Type de périphérique | Adaptateur de bus hôte | |
| Format | Carte enfichable - profil bas | |
| Type d'interface (bus) | PCI Express 4.0 x8 | |
| Révision des spécifications PCI | PCIe 4.0 | |
| Ports | 32Gb Fibre Channel Gen 7 (Short Wave) x 2 | |
| Dimensions (LxPxH) | 16.8 cm x 6.9 cm | |
| Type de câblage | Canal à fibre optique | |
| Protocole de liaison de données | 32Gb Fibre Channel Gen 7 (SW) | |
| Débit de transfert de données | 28.05 Gbits/s | |
| Configuration requise | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 | |
| Garantie du fabricant | 1 an de garantie | |
| Conçu pour | ThinkSystem SR630 V2 7Z70, 7Z71; SR635 7Y98, 7Y99; SR645 7D2X, 7D2Y; SR650 V2 7D15, 7Z72, 7Z73; SR655 7Y00, 7Z01; SR665 7D2V, 7D2W; ST650 V2 7Z74, 7Z75 | |
| |
Type de périphérique | Adaptateur de bus hôte |
|
Format | Carte enfichable - profil bas |
|
Type d'interface (bus) | PCI Express 4.0 x8 |
|
Révision des spécifications PCI | PCIe 4.0 |
|
| |
Ports | 32Gb Fibre Channel Gen 7 (Short Wave) x 2 |
|
Technologie de connectivité | Filaire |
|
Type de câblage | Canal à fibre optique |
|
Protocole de liaison de données | 32Gb Fibre Channel Gen 7 (Short Wave) |
|
Canal à fibre optique | FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-FS-3, FC-FS-4, FC-FS-5, FC-GS-2, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-LS-2, FC-LS-3, FC-MI, FC-NVMe, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-5, FC-PI-6, FC-PI-7, FC-Tape, FCP-2, FCP-4, FCP-3, SBC-3, SPC-3, SPC-4, SSC-2, SSC-3, SSC-4 |
|
Débit de transfert de données | 28.05 Gbits/s |
|
| |
Interfaces | 2 x 32Gb Fibre Channel Gen 7 (Short Wave) - SFP+ |
|
| |
Accessoires inclus | Support de fixation extra-plat, support pleine hauteur |
|
Normes de conformité | TUV, ICES-003 classe A, RoHS, UL 60950-1 Second Edition, FCC Part 15 A, CSA 22.2, BSMI Class A, Directive 2011/65/EU, VCCI Class A, MSIP Class A, China RoHS, RCM, AS/NZS CISPR22:2009+A1 Class A, EN 55024:2010, EN 55022:2010 Class A, cURus, EN 55032:2012, EN60950-1+A11+A1+A12+A2, CSA 60950-1-07 |
|
| |
Système d'exploitation requis | Microsoft Windows Server 2016, Microsoft Windows Server 2019, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, Red Hat Enterprise Linux 8.3, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 |
|
| |
Service et maintenance | Garantie limitée - 1 an |
|
| |
Température minimale de fonctionnement | 0 °C |
|
Température maximale de fonctionnement | 55 °C |
|
Taux d'humidité en fonctionnement | 5 - 95 % (sans condensation) |
|
|
